SPECIFICATIONS

Applicable Door Aperture: 15mm - 36mm

Applicable Door Thickness: 35mm - 115mm

Brand Name: NONE

Built-in Battery: 10000mAh Rechargeable Lithium Battery

Camera Viewing Angle: 140° Ultra Wide Angle

Certification: CE,RoHS

Charging Interface: USB-C

Choice: yes

Detection Technology: PIR Human Motion Detection

Display: Color

Display Screen: 5-inch IPS HD Screen

Feature: Photograph,Video

High-concerned chemical: None

Input Voltage & Current: 5V/1A

Item Type: PeepHole

Itercom: Yes

Linking method: Wifi

Night vision function: Day & Night Full Monitoring

Origin: Mainland China

Power: Dry battery

Smart APP: Smart Life / TuyaSmart

Smart home platform: Tuya

Video Resolution: 1080P Full HD

Important Notes

- The peephole camera without a doorbell button is relatively small in size

- Please charge the device directly on the door without removing the main unit during charging, as removing the host may damage the internal flexible cable accidentally.

- Do not use fast charging adapters to charge the doorbell, which may cause burnout of the host device.

- The device only supports 2.4G WiFi network, not 5G WiFi. If network connection fails, please confirm the WiFi band and check whether the password is entered correctly.

- When the battery power is lower than 5%, the device will push low battery reminders, and the APP will be unable to connect to the device temporarily.

- The TF card needs to be formatted as FAT format with C10 transmission rate to ensure normal recording and storage.

Product Features

● 1080P HD Visual Experience & 140° Wide View: Equipped with 1080P high-definition camera and 5-inch IPS high-clear display screen, delivering ultra-clear real-time door image. The 140° ultra-wide viewing angle eliminates monitoring dead angles, covering the entire door area to record every detail of visitors and outdoor conditions.

● 10000mAh Large Battery & 90 Days Ultra-long Standby: Built-in 10000mAh rechargeable lithium battery, supporting 5V/1A USB-C power supply. Under daily normal use (20 working times per day, 15-second video recording each time), it achieves up to 90 days super long standby time. Intelligent low battery reminder function pushes alerts via APP when power is lower than 5% for timely charging.

● Flexible Video Recording Modes: Support adjustable video recording duration (15s/30s/60s) to meet different monitoring needs. Continuous 24-hour full-day recording is available when plugged in with power supply, ensuring all-day uninterrupted door security monitoring.

● Automatic Screen Wake-up & Privacy Protection: Smart auto screen-on design, the screen lights up automatically when visitors press the doorbell. Human body detection screen wake-up function is adjustable via mobile APP. Built-in silent recording function effectively avoids invading neighbors’ privacy, compliant with daily home use norms.

● Linger Alert & Intelligent Recording: Advanced PIR human motion detection technology accurately identifies outdoor moving objects. It automatically captures snapshots and records videos when someone lingers at the door, and pushes real-time alert notifications to the mobile APP. All recorded files can be viewed and played back for evidence checking (TF card required).

● Clear Two-Way Audio Intercom: Built-in high-sensitivity microphone and speaker, realizing smooth two-way voice talk. You can clearly hear visitors’ voices and communicate with couriers, guests or strangers remotely anytime, improving home safety and convenience.

● Day & Night Full Monitoring: Excellent infrared night vision function ensures clear and visible door monitoring effect even in dark night environment, realizing 24-hour day and night uninterrupted security protection without blind spots.

● Dual Storage Methods & Smart APP Control: Support local FAT-format C10 high-speed TF card (max 128GB, not included) and cloud storage for alarm video saving and playback. Free smart APPs "Smart Life" and "TuyaSmart" are available for download on Google Play and Apple Store, supporting real-time remote monitoring, parameter setting and message push.

Product Specifications

- Camera Viewing Angle: 140° Ultra Wide Angle

- Display Screen: 5-inch IPS HD Screen

- Video Resolution: 1080P Full HD

- WiFi Standard: 802.11 b/g/n (2.4G WiFi only)

- Input Voltage & Current: 5V/1A

- Built-in Battery: 10000mAh Rechargeable Lithium Battery

- Standby Time: Up to 90 days (standard daily use)

- Storage Support: Max 128GB Micro SD Card (FAT format, C10 speed required, not included) + Cloud Storage

- Recording Duration: 15s/30s/60s adjustable, 24h full-day recording (plug-in power only)

- Applicable Door Thickness: 35mm - 115mm

- Applicable Door Aperture: 15mm - 36mm

- Charging Interface: USB-C

- Charging Cable Length: 3m

- Product Package Size: 220*135*80mm

- Smart APP: Smart Life / TuyaSmart

- Detection Technology: PIR Human Motion Detection

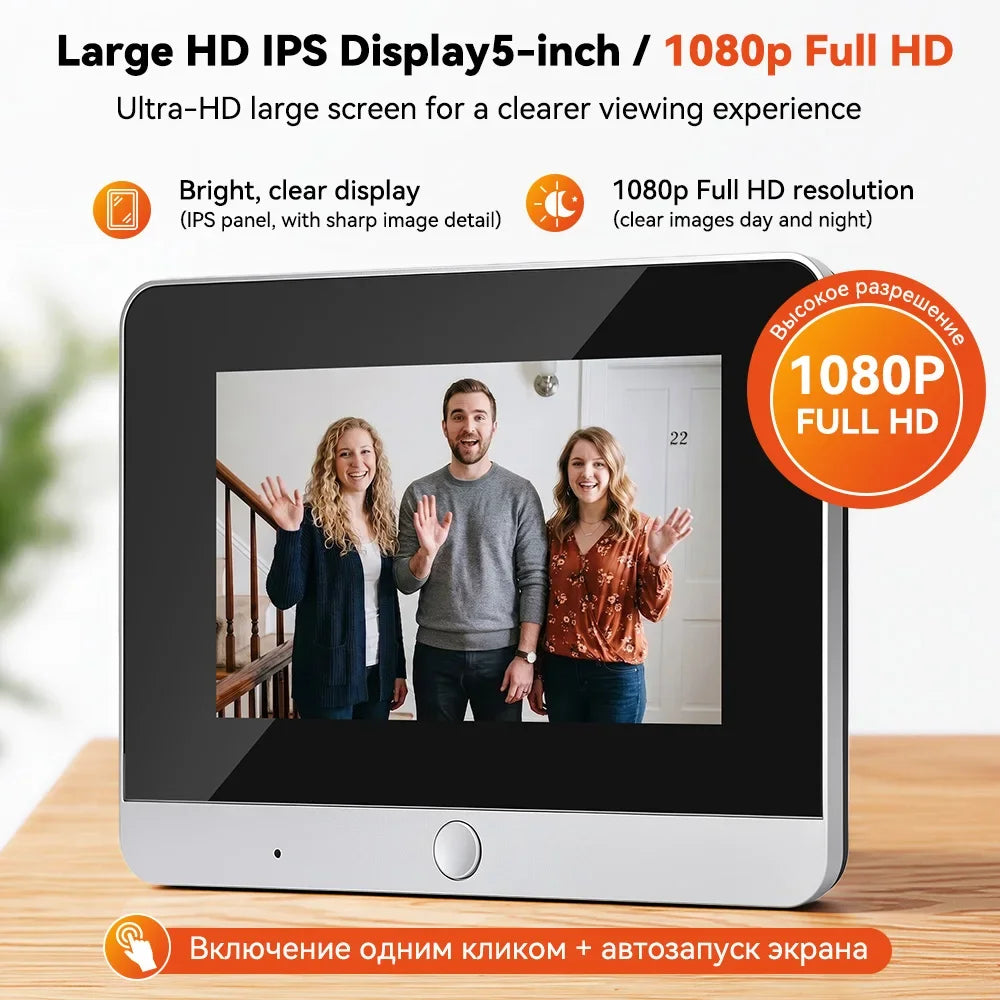

Large HD IPS Display—5-inch / 1080p Full HD

Ultra-HD large screen for a clearer viewing experience

Bright, clear display (IPS panel, with sharp image detail)

1080p Full HD resolution (clear images day and night)

Two-way voice intercom

Long-distance calls, bringing visitors closer than ever140° wide-angle field of view

Safe and convenient—one device does it all

Built-in 10000mAh rechargeable battery and 5V 1A USB cable power supply (combining battery life with direct USB charging for greater flexibility)

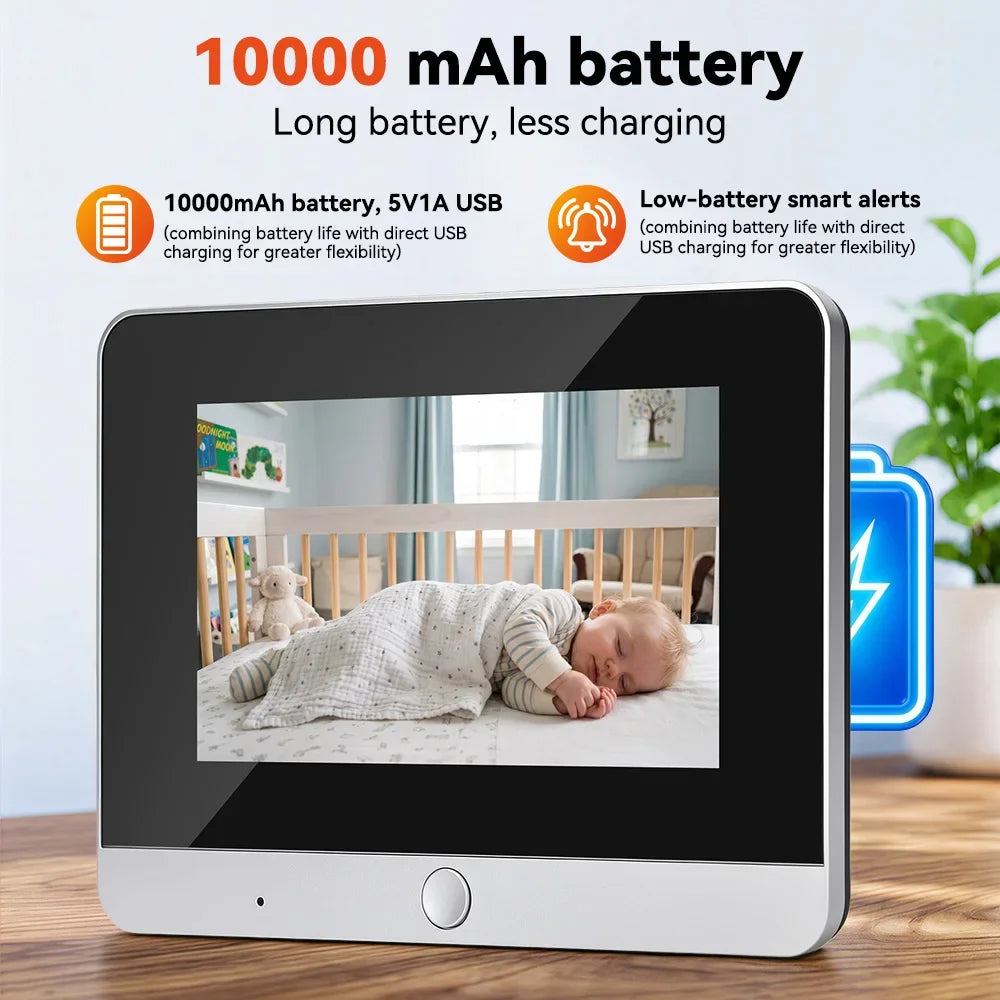

Low-battery smart alerts (app push notifications to prevent sudden disconnections)10000 mAh battery

Long battery life, reducing the need for frequent

Built-in 10000mAh rechargeable battery and 5V 1A USB cable power supply (combining battery life with direct USB charging for greater flexibility)

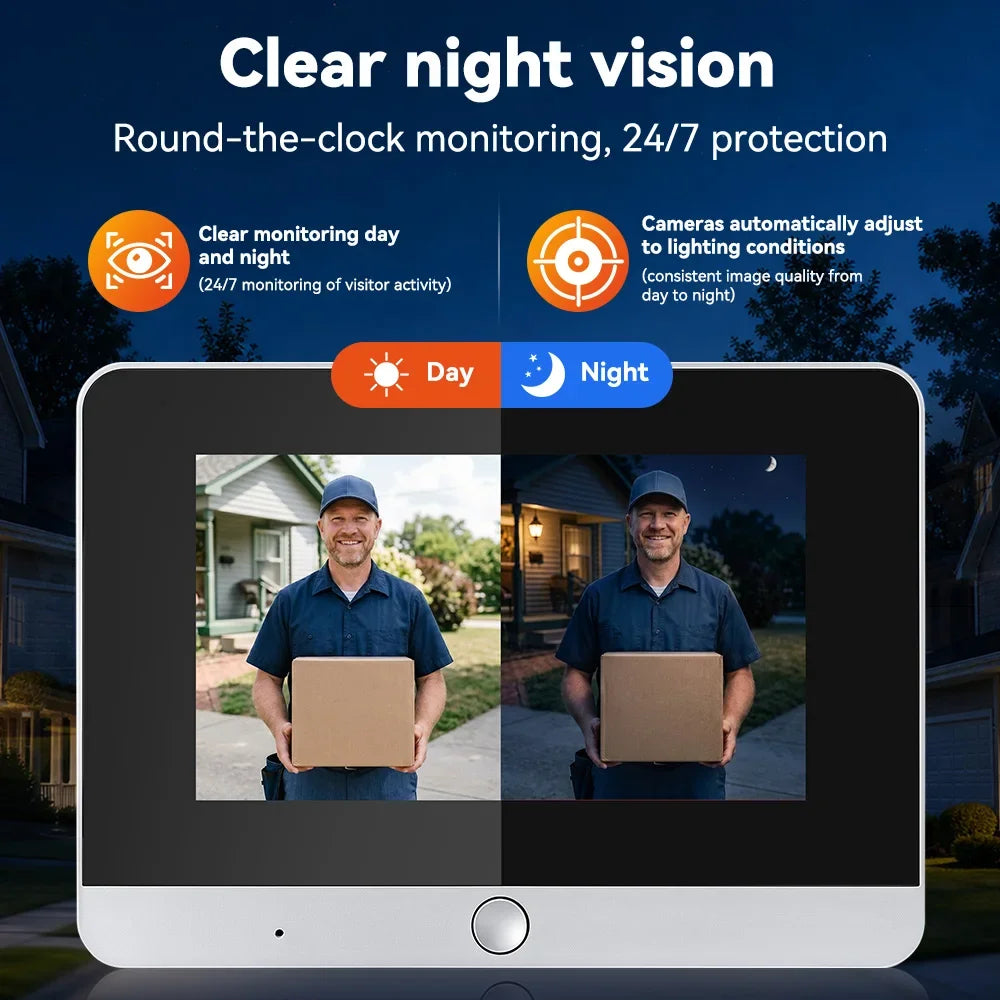

Low-battery smart alerts (app push notifications to prevent sudden disconnections)Clear night vision

Round-the-clock monitoring, 24/7 protection

Clear monitoring day and night (24/7 monitoring of visitor activity)

Cameras automatically adjust to lighting conditions (consistent image quality from day to night)Supports Max 128GB Memory Cards (Optional) (Memory card sold separately)

Large storage capacity—access your recordings anytime

Photo / Flexible Recording Mode (Event recording / 24/7 recording optional, memory card required for recording)

Adjustable recording duration (15/30/60 seconds event recording, 24-hour all-day recording available with power supply)

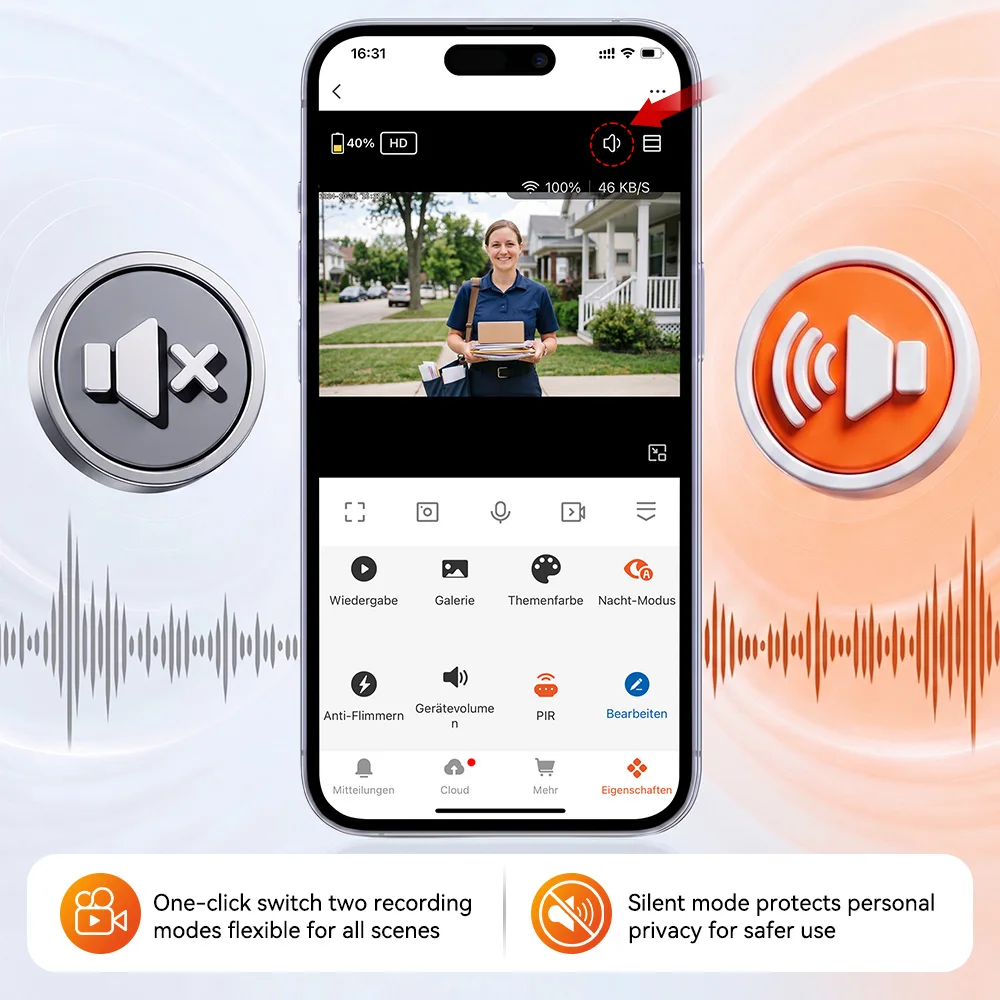

AI Cloud Storage Protect your privacy with care (Optional paid service available in the app)Audio / Silent Recording

Dual modes for free switching to meet diverse needs

One-click switch between two recording modes, easy to operate

Flexible selection for different usage scenarios

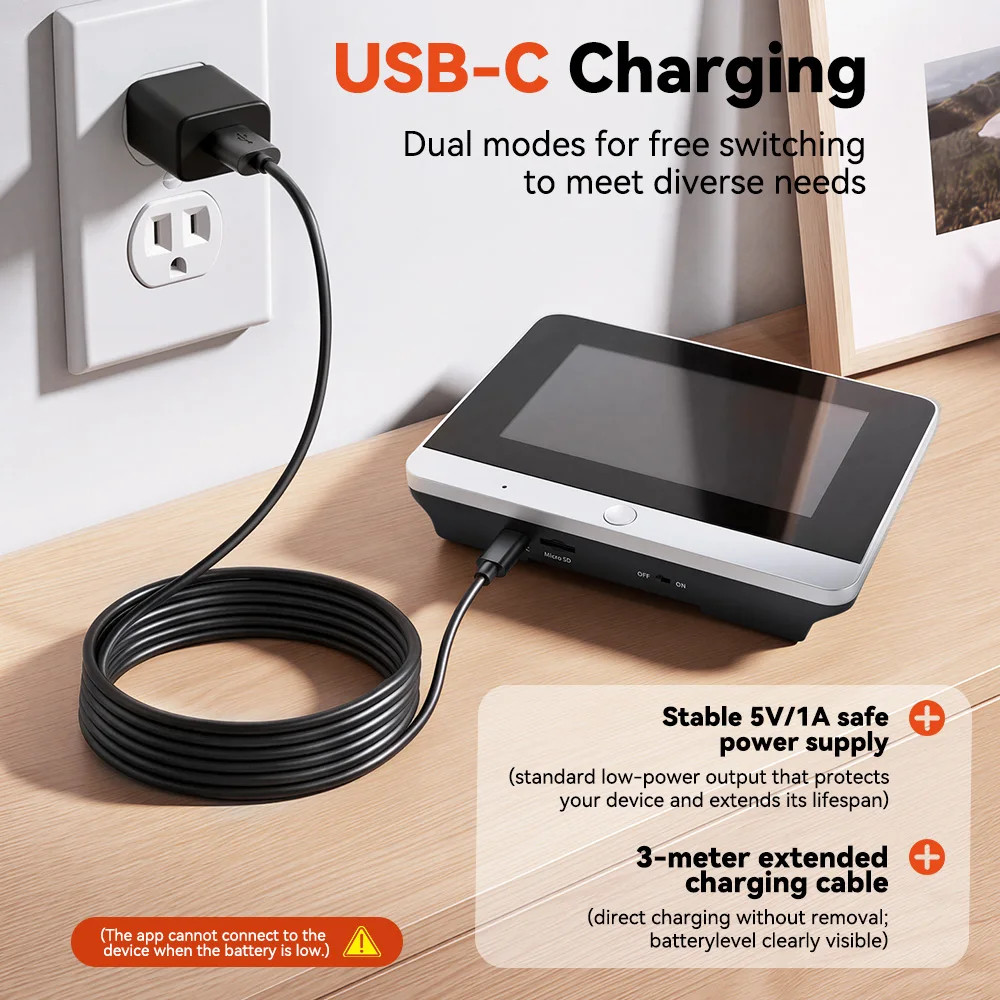

Silent mode protects personal privacy for safer useUSB-C Charging

Convenient charging, with battery status at a glance

3-meter extended charging cable (direct charging without removal; battery level clearly visible)

Stable 5V/1A safe power supply (standard low-power output that protects your device and extends its lifespan)

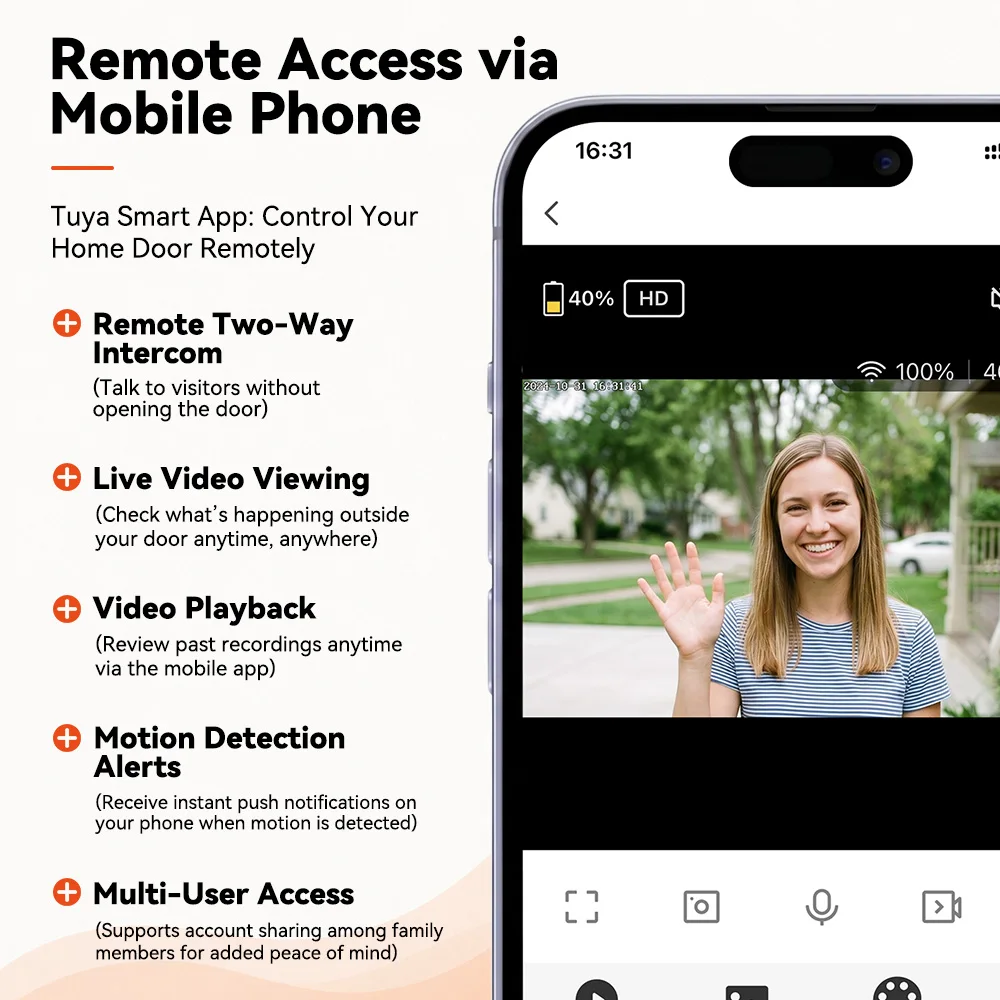

(The app cannot connect to the device when the battery is low.)Remote Access via Mobile Phone

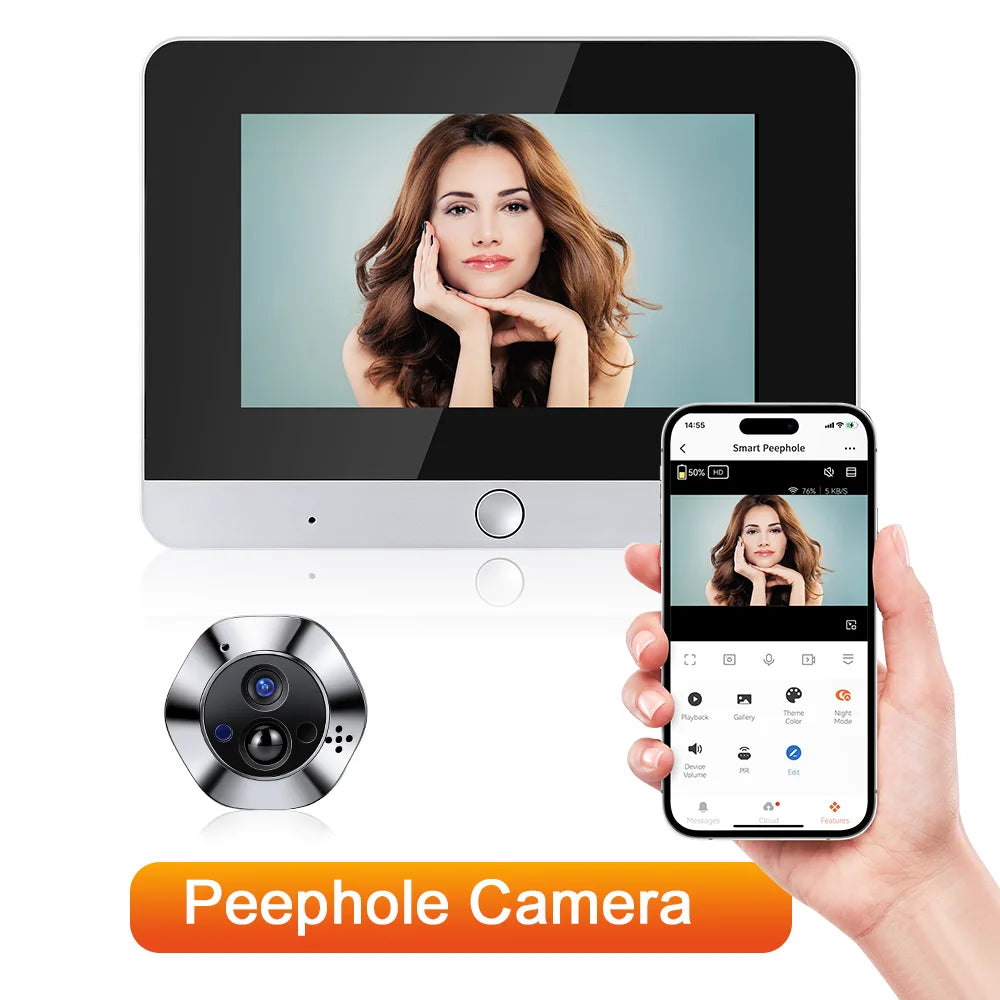

Tuya Smart App: Control Your Home Door Remotely

Remote Two-Way Intercom (Talk to visitors without opening the door)

Live Video Viewing (Check what’s happening outside your door anytime, anywhere)

Video Playback (Review past recordings anytime via the mobile app)

Motion Detection Alerts (Receive instant push notifications on your phone when motion is detected)

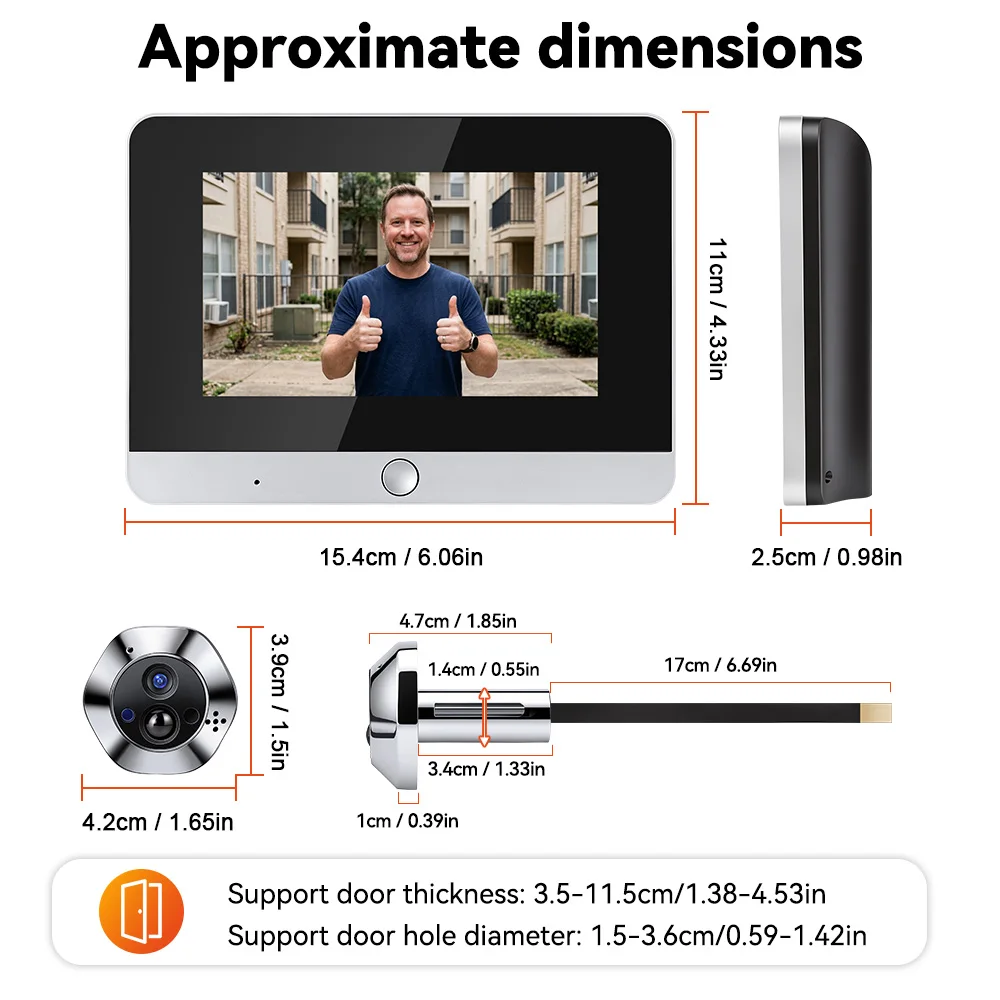

Multi-User Access (Supports account sharing among family members for added peace of mind)Approximate dimensions

Suitable door thickness: 35 mm–115 mm

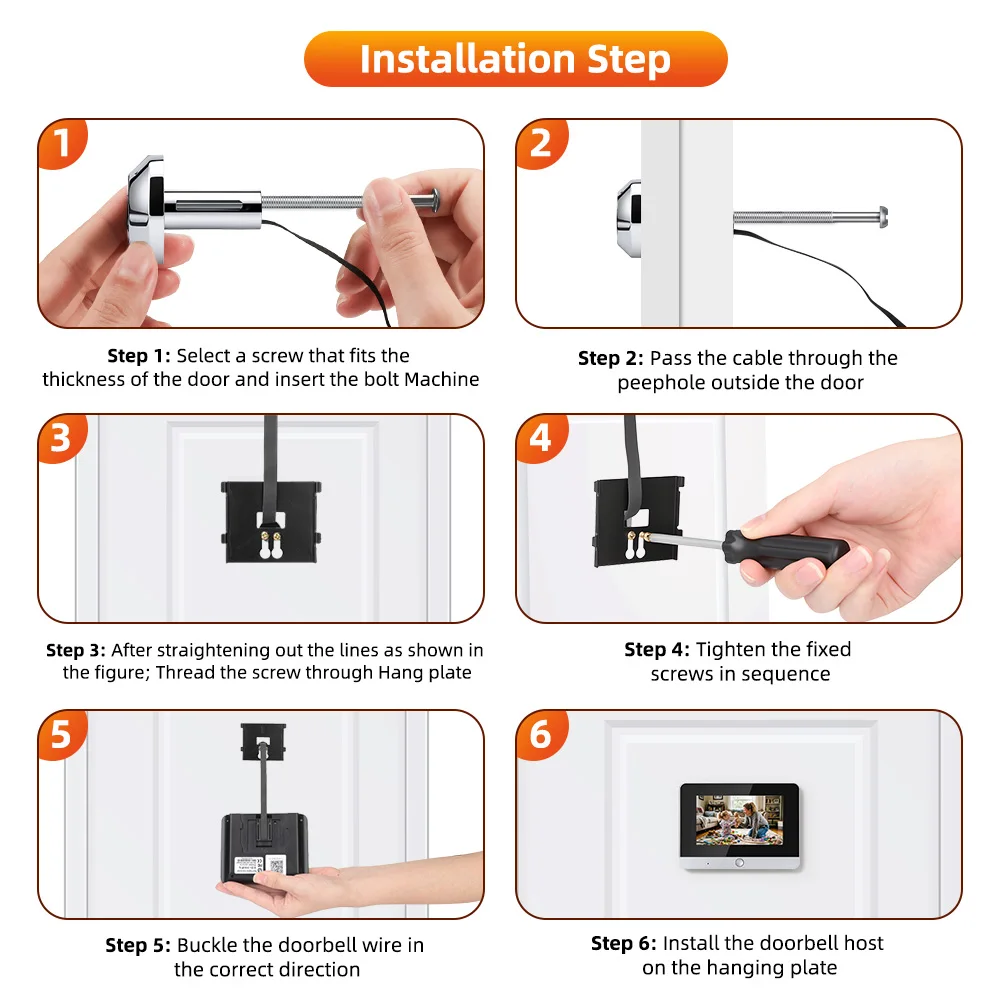

Suitable door opening diameter: 15 mm–36 mmInstallation Guide

Step 1: Select a screw that fits the thickness of the door and insert the bolt Machine

Step 2: Pass the cable through the peephole outside the door

Step 3: After straightening out the lines as shown in the figure; Thread the screw through Hang plate

Step 4: Tighten the fixed screws in sequence

Step 5: Buckle the doorbell wire in the correct direction

Step 6: Install the doorbell host on the hanging plate
