SPECIFICATIONS

AI Functions: Vehicle Detection

Alarm Type: telefon Alarm,Local Alarm

Audio Output: Two Way Audio

Brand Name: anpviz

Certification: CE,FCC

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

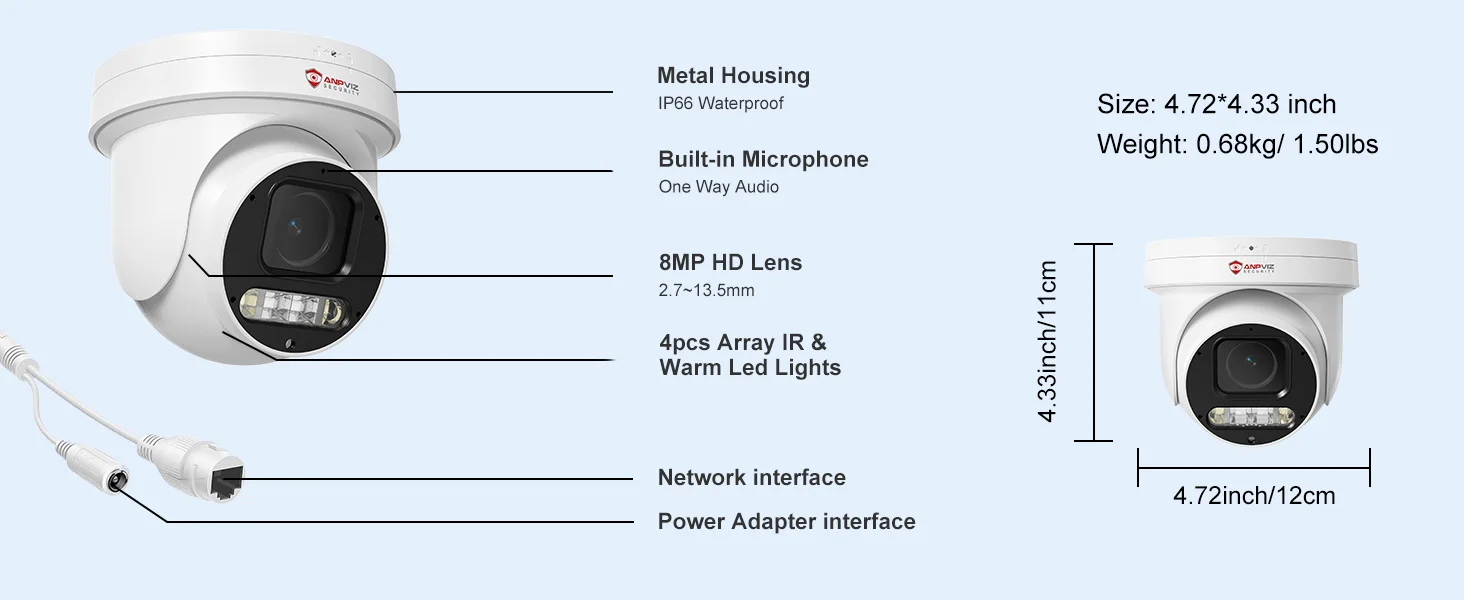

Dimensions (L x W x D)(mm): 15*14*17cm

High Definition: 8.0 Megapixels

High-concerned chemical: None

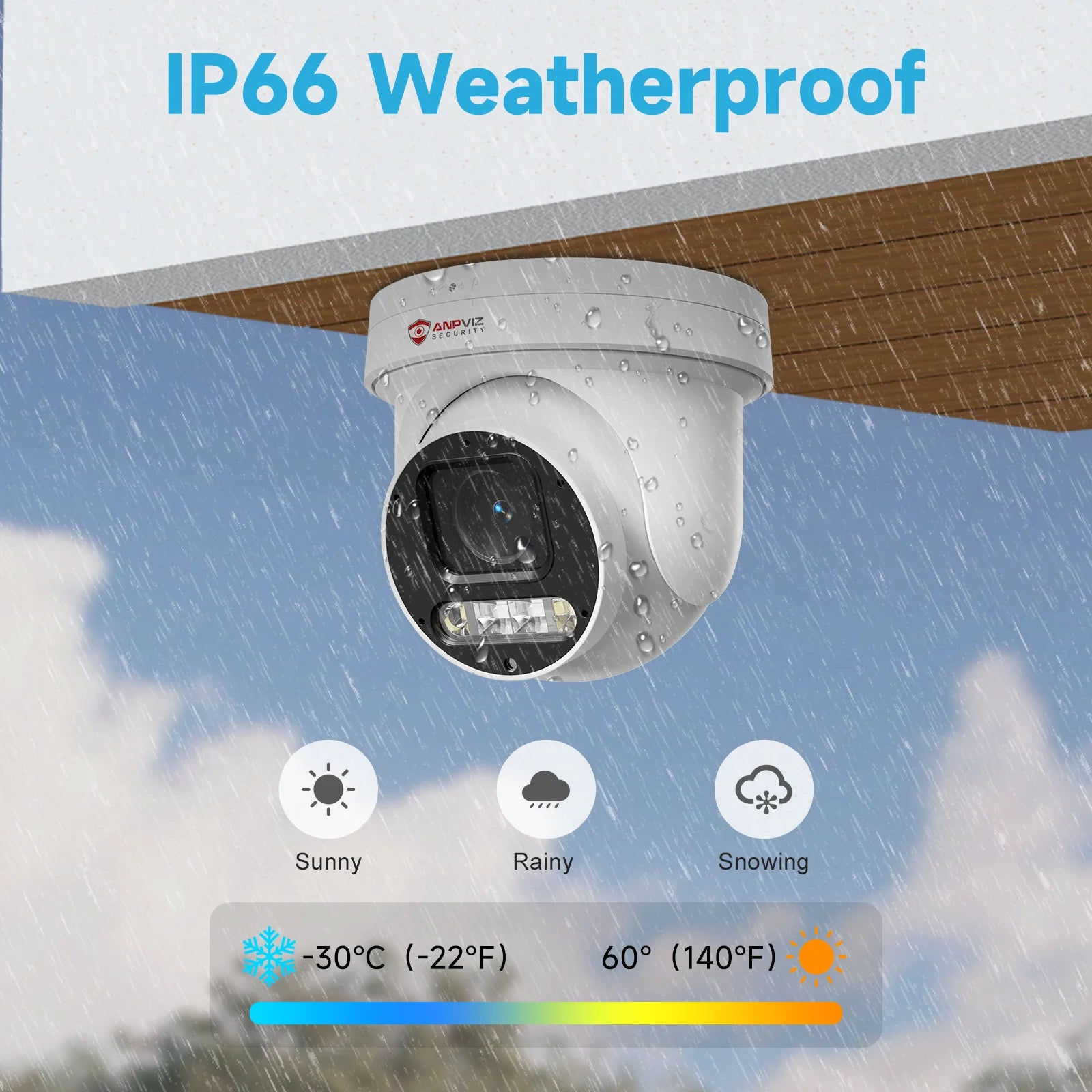

IP Rating: IP66

IR Distance(m): Up to 30m

Installation: Side

Lens (mm): 2.7-13.5mm

Lens Quantity: Single Lens

Megapixels: 8MP

Model Number: PTZIP30A80WD-SA-5X(A)

Operating Temperature: -10°-60°

Optical Zoom: 4X

Origin: Mainland China

Power Consumption(W): Max 6W

Power Supply: With Poe

Power Supply(V): DC 12V

Rechargeable Battery: NONE

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Metal

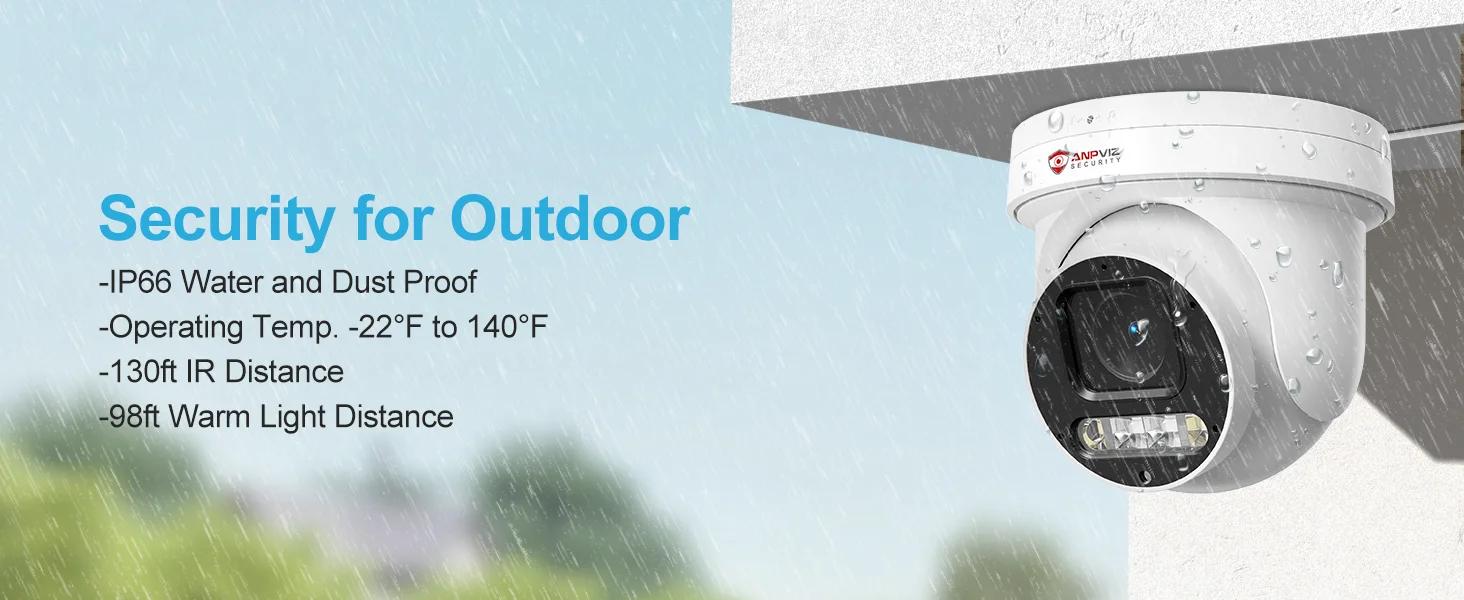

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 7,macOS,Windows 8,Windows 10

TF Card: None

Video Compression Format: H.264,H.265

Viewing Angle : 100°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 5x

Zoom type: Optical zoom

Anpviz 4K 8MP PoE PTZ Camera Outdoor, 5X Optical Zoom 2.7~13.5mm Lens, Pan 280° Tilt 90° IP Security Camera Human Vehicle Detection, Spotlight&Sound Alarm, 2 Way Talk,NDAA, PTZIP30A80WD-SA-5X (U Series)

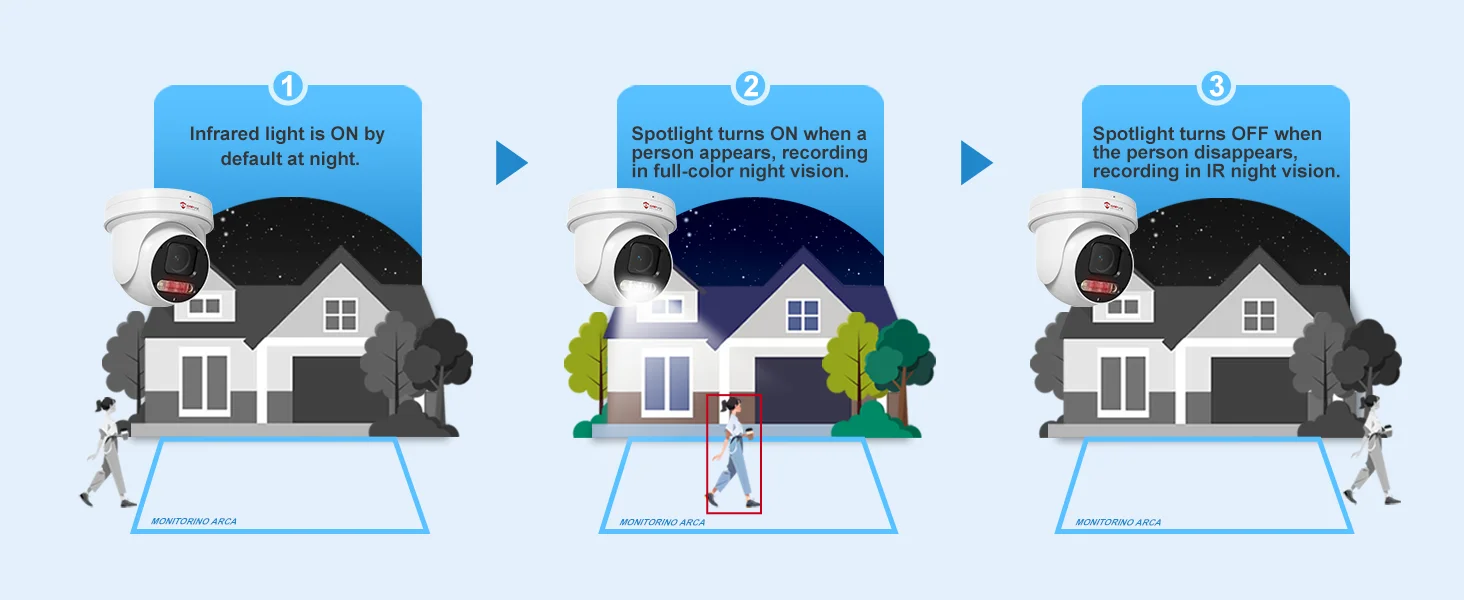

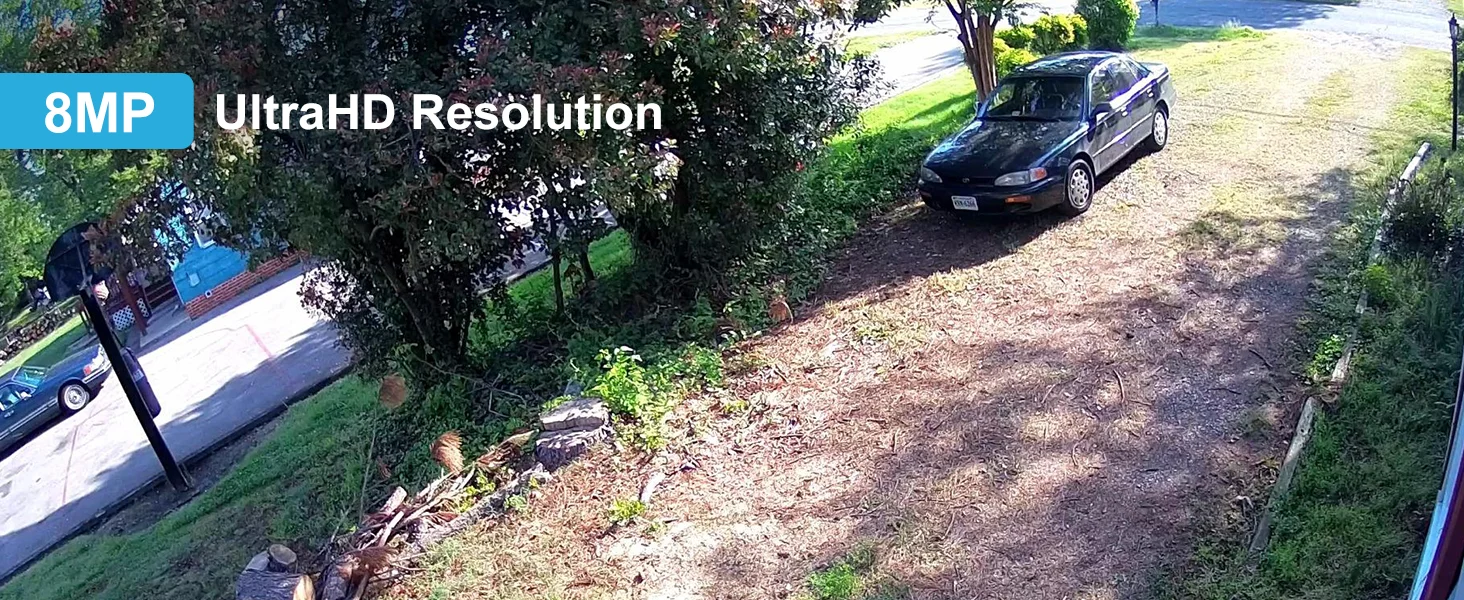

1/2.8" SO-NY CMOS Sensor and IR Night Vision: It features max resolution 3840x2160 ultra HD video quality, 4k resolution for exceptional noise, low latency capturing ultra high definition live images up to 20fps. With 8 IR LED lights, the ptz poe dome Camera can extend the viewing distance to 100ft.

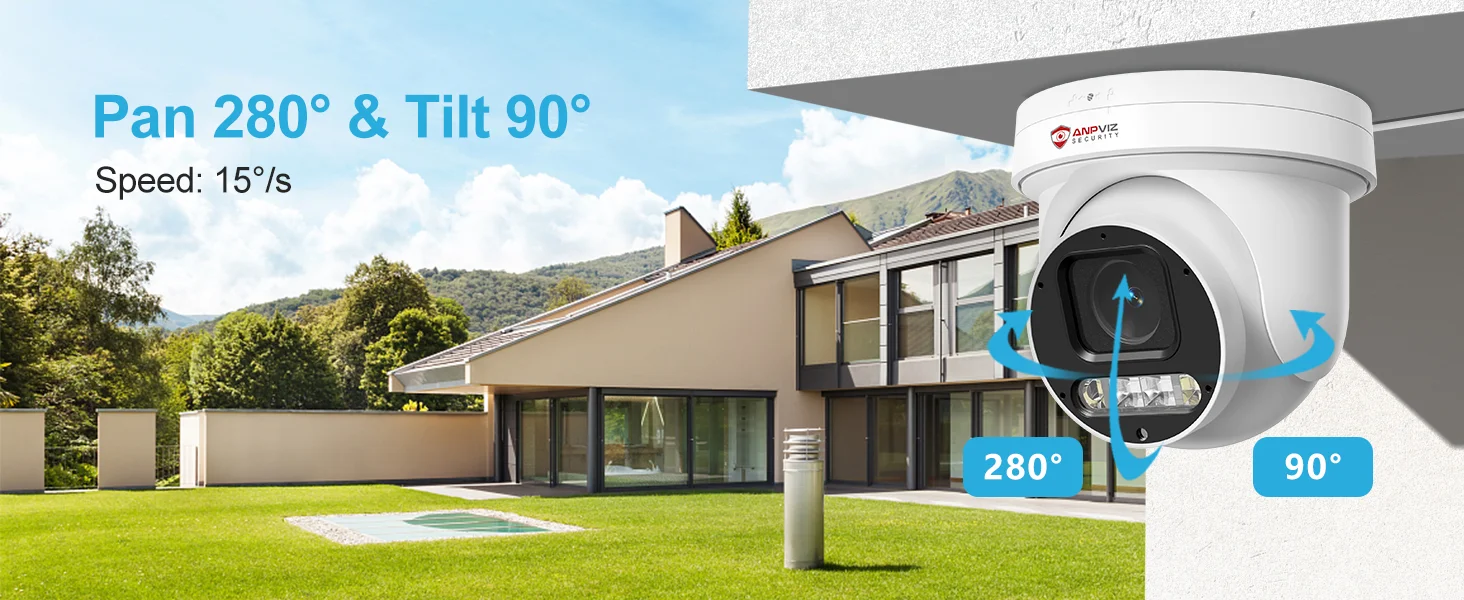

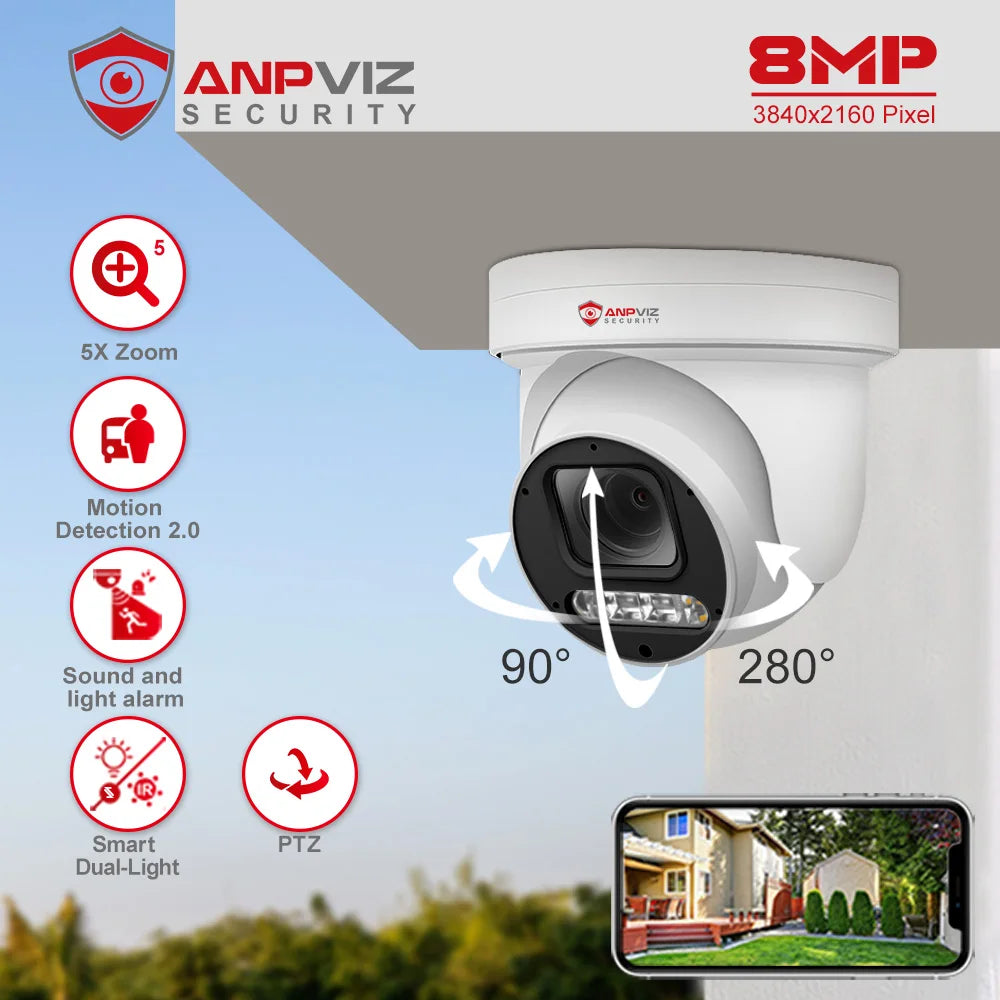

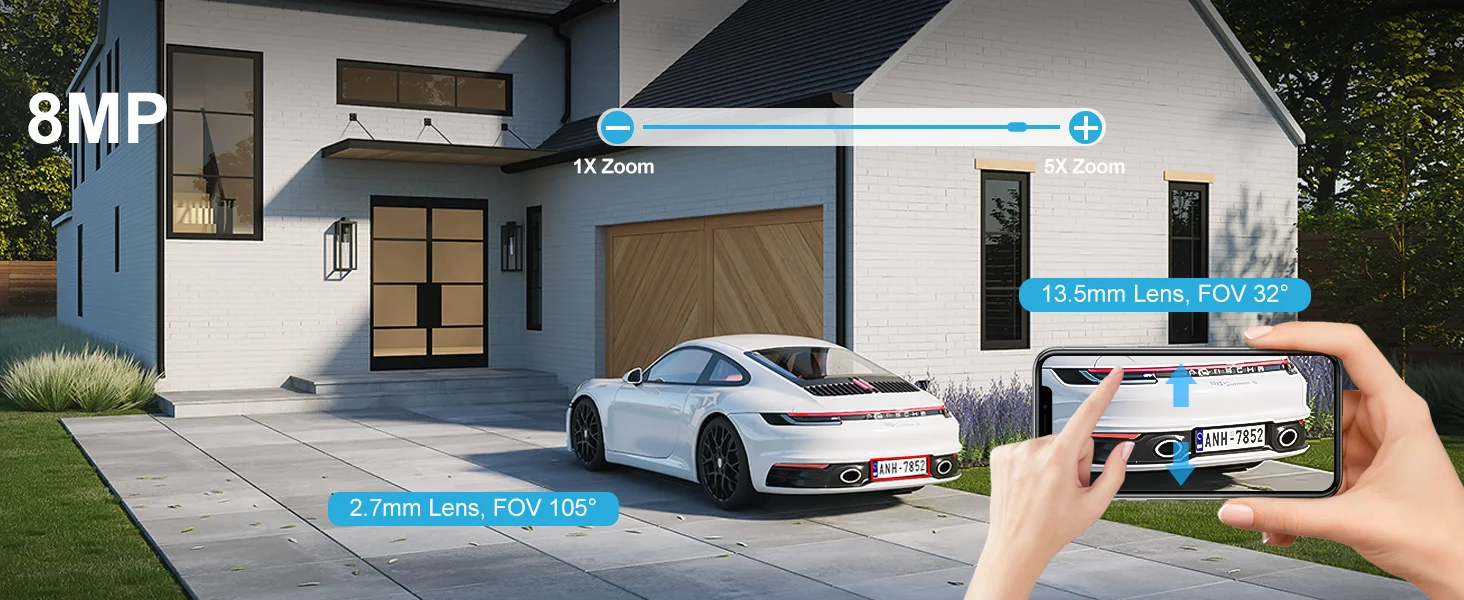

0-280°pan & 0-90°til and 5X Optical Zoom:This 8mp ptz poe camera outdoor support 0-280°pan & 0-90°tilt, enabling 5x optical zoom without compromising image quality, the ptz camera features a 2.7-13.5mm motorized lens.

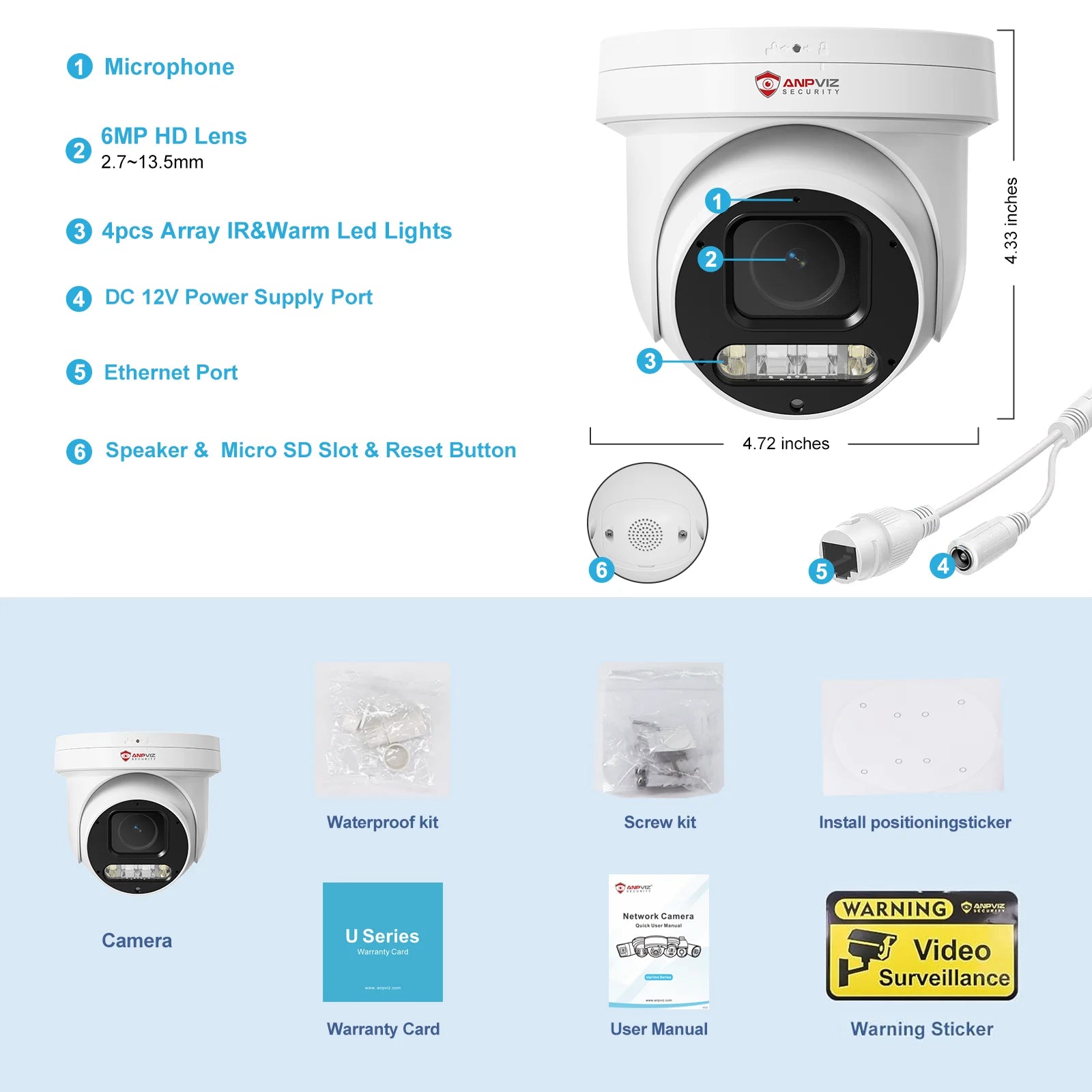

Two-Way Audio and SD Card Slot: The built-in microphone and speakers allow you and your visitors to have a real-time conversation (Two-way Audio is only works with Anpviz U-Series NVRs). Equipped with a micro SD card slot, it supports up to 512GB (Without SD card).



Human/Vehicle/Motion Detection and Alarm Notification: This poe ptz camera outdoor is equipped with Smart motion detection. If the camera is set to instant email alerts, it will push notifications to your device when motion is detected.



Remote Access:You can remotely view surveillance footage and capture snapshots using the VideoLink mobile app and LMS/VideoLink PC client. Support ON-VIF NVR. This ptz poe camera is plug and play with Anpviz U series NVR. If there are any operational or product issues, please contact us.

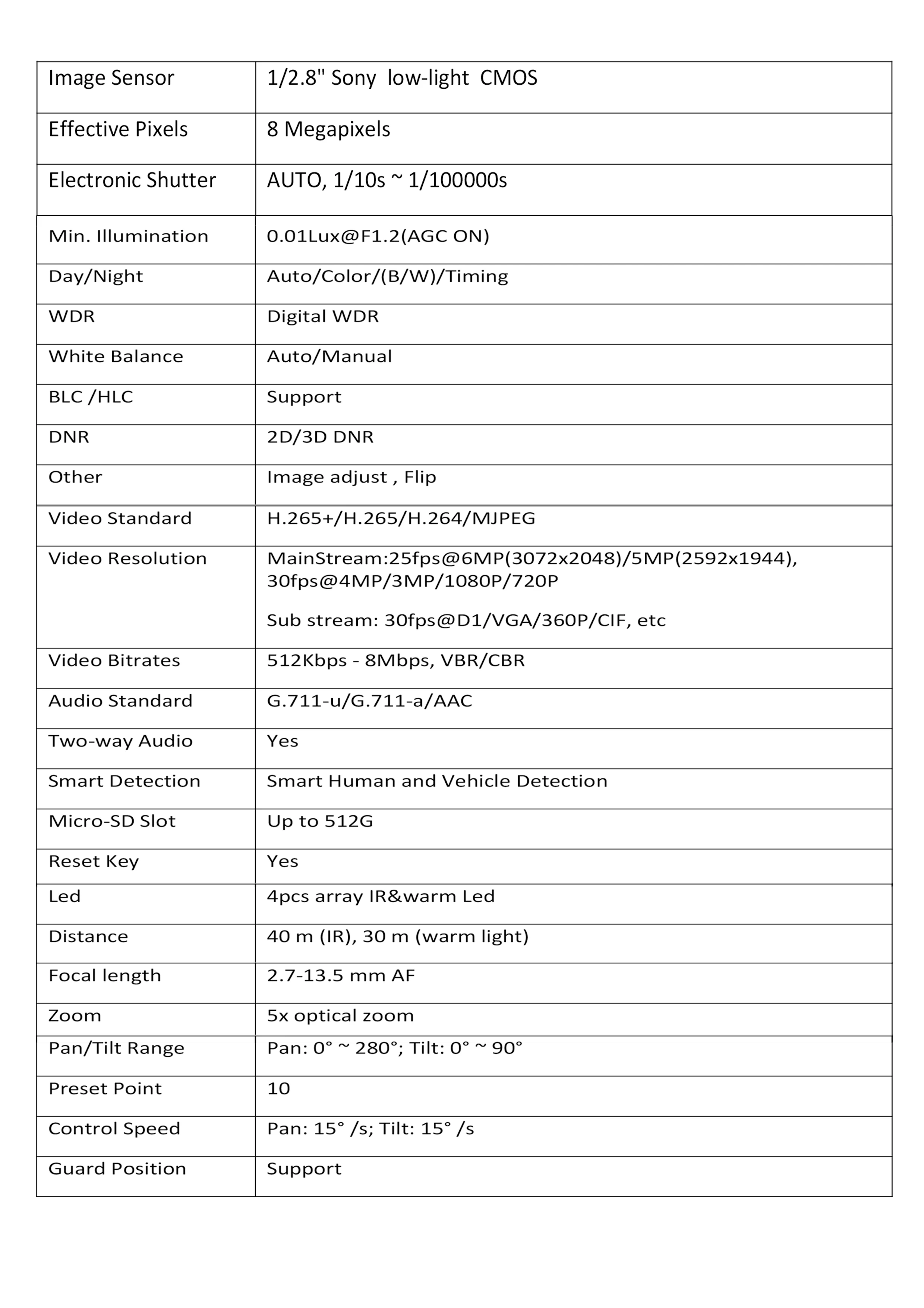

Parameter information you want to know: 0-350°pan & 0-90°tilt , Two-way audio, Human/vehicle/motion detection, 1/2.8" S-NY IMX415 sensor, 8mp(3840x2160)@20fps, 5X optical zoom, 100ft IR night vision, 2.7-13.5mm lens, 512GB SD card slot, IP66 waterproof, IK10 explosion-proof, Wall/ceiling-mounted.

Q:Does this camera have auto tracking?

A:NO

Q:How to control the PTZ function of the camera?

A:The camera can be controlled through the mobile APP, PC web interface, and PC client software. They all have a PTZ controller section.

Q:What is the default username and password of the camera?

A:The camea default username:admin, password: 123456

Q:Can I use it with DC 12V or PoE?

A:Yes, Camera support DC12V Or DC48V PoE Swtich or PoE NVR

Q:How to power the camera?

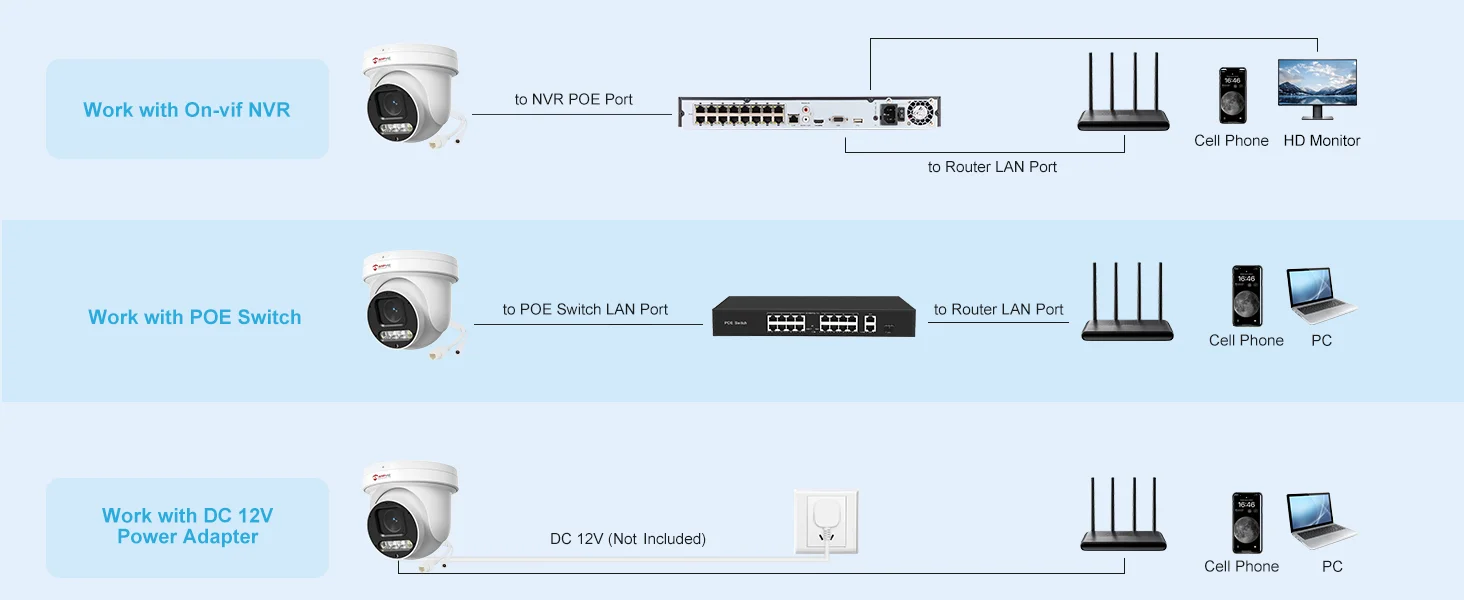

A:This is a POE camera, it can get the power by using a ethernet cable to connect it to a NVR PoE or PoE Switch. or using DC 12V powered

Q:This camera works with Hikvision's NVRs?

A:Yes, it's ok

Q:Can this camera connect NVR?

A:Yes, all NVRs or VMSs that support the onvif protocol can be connected
